Drawing review
2D/3D revision, material, hardness, datums, finish and critical dimensions.
PRODUCT Core manufacturing capability
Precision Mold Components
built to controlled drawings.
Huicheng manufactures custom inserts, cores, cavities, punches and drawing-specific precision parts. The process route is selected from the geometry, material, heat treatment, datums and inspection requirements.
Send a Component RFQ →
01 Component scope
One supplier for the
coordinated process route.
The company material identifies precision plastic mold components as Huicheng's main business. Work can be coordinated from material sourcing through machining, EDM or wire EDM, grinding, inspection and delivery.
02 Representative components
Inspect the work.
Then review the drawing.

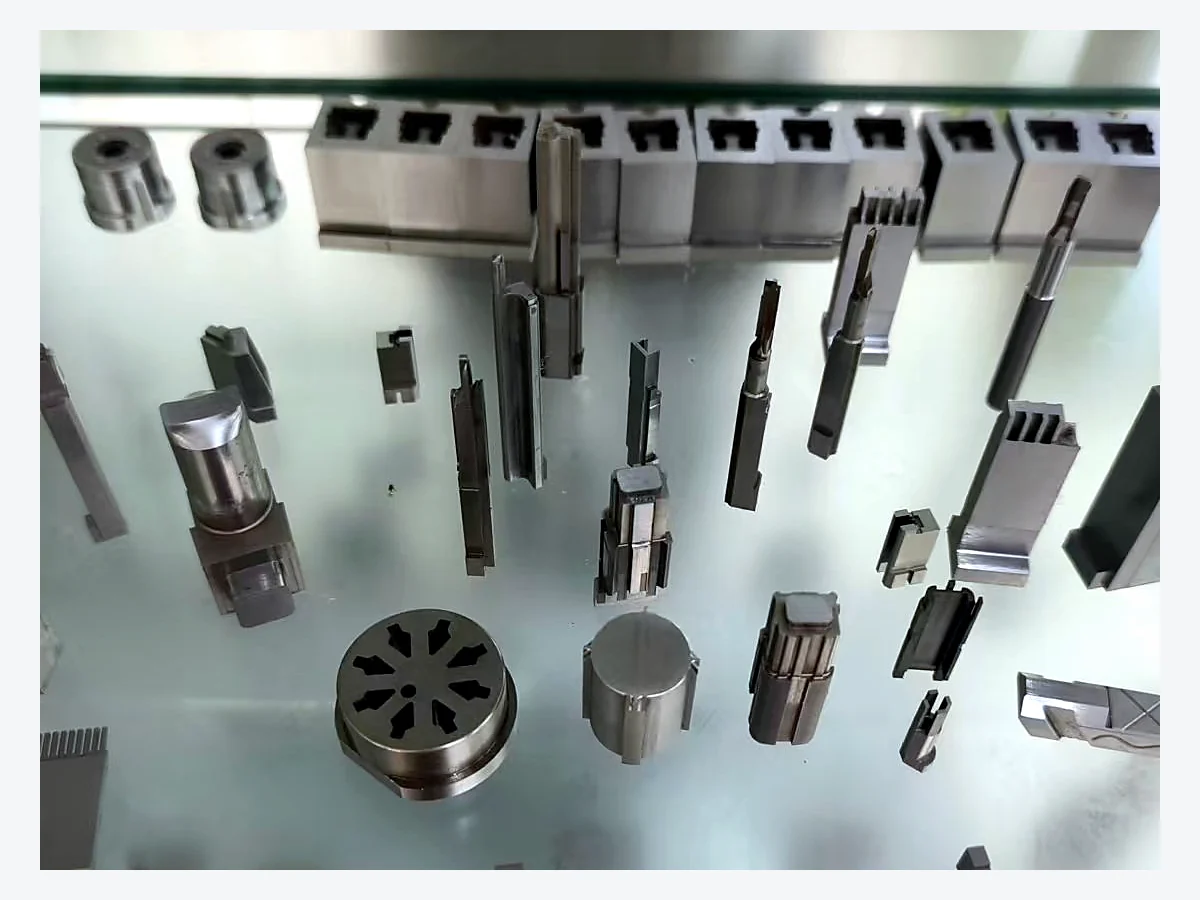

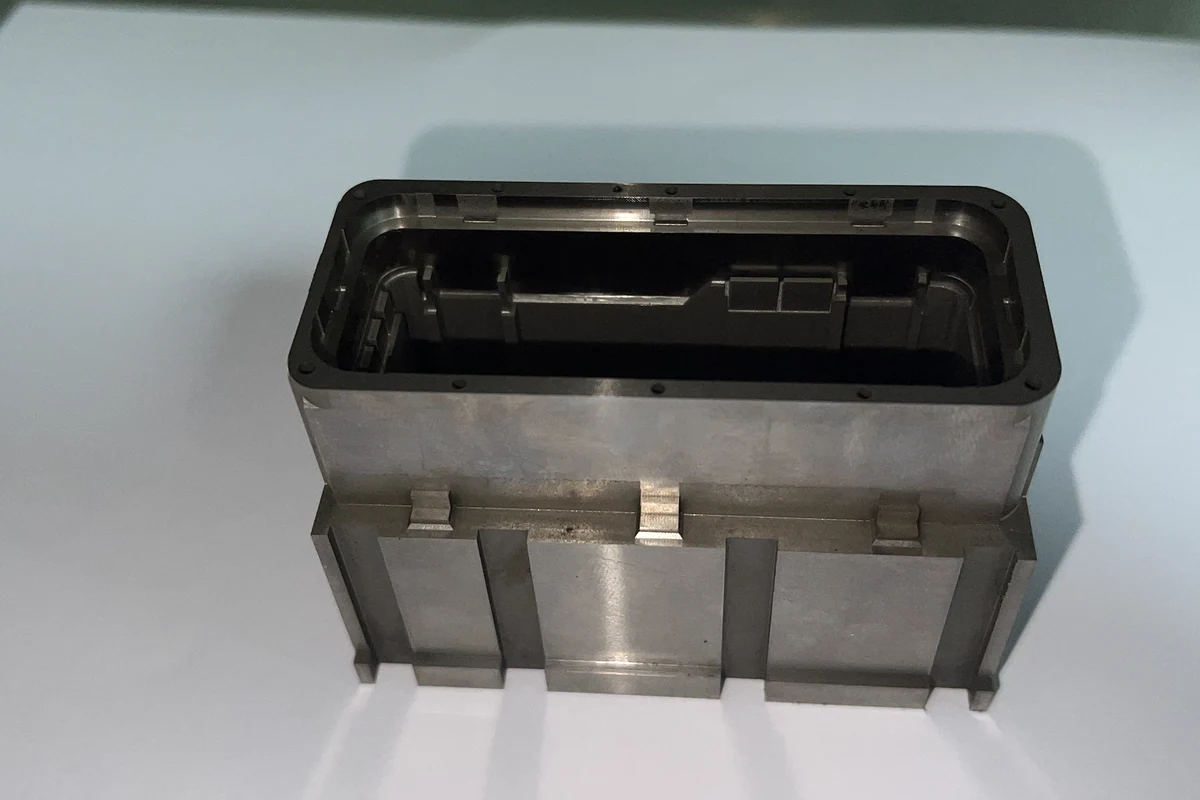

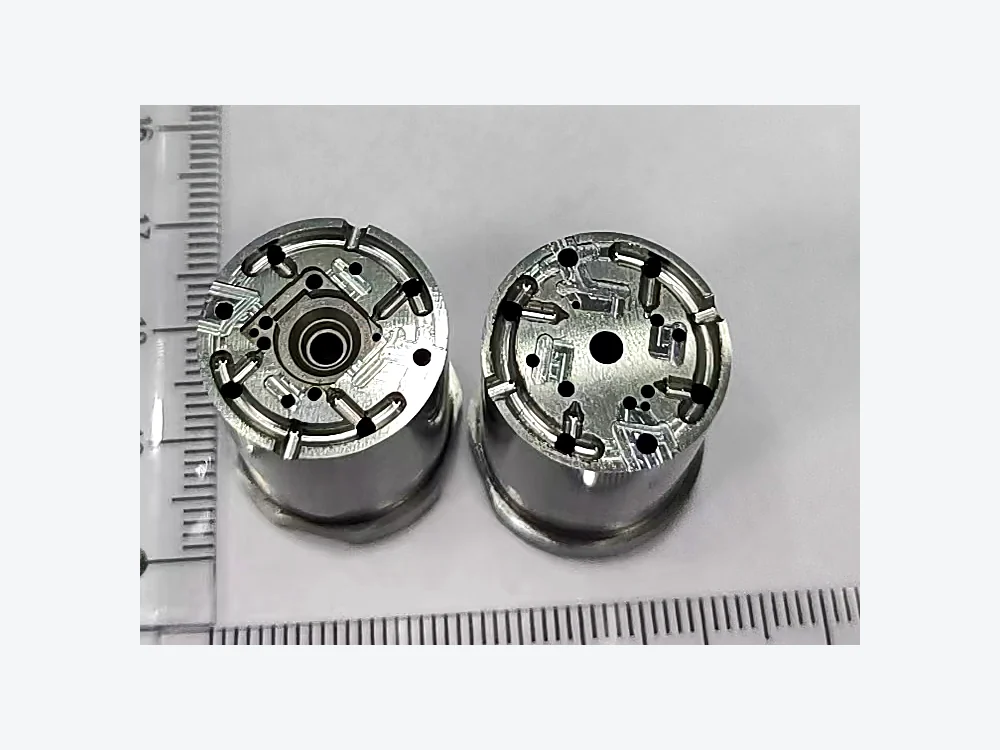

These photographs show representative mold components and tooling from Huicheng's company materials. They demonstrate the range of forms handled, but do not define a standard size, material or tolerance.
See EDM & wire EDM support →
Representative work only. Customer drawings, names, dimensions and project identifiers are not shown. Material, tolerance and inspection requirements are confirmed from the controlled drawing.
03 Recorded process capability
CNC machiningStable tolerance: 0.01 mm · Maximum recorded work size: 850 × 500 × 400 mm
EDMStable tolerance: 0.005 mm · Minimum gap: 0.002 mm · Minimum internal radius: 0.01 mm · Surface finish: Ra 0.1
Slow-wire EDMStable tolerance: 0.02 mm · Maximum recorded work size: 500 × 350 × 260 mm · Surface finish: Ra 0.3
Surface grindingStable dimensional tolerance, flatness and parallelism: 0.02 mm · Maximum recorded work size: 1,200 × 500 × 400 mm · Surface finish: Ra 0.4
Typical applicationsConnectors, electronics, automotive components and engineered plastic products
Materials named in factory recordsSKD61, DC53, 1.2344, 8407, ASP23, VIKING and STAVAX
Available processesCNC, grinding, EDM, wire EDM, heat treatment and project-specific finishing
Inspection resourcesCMM, vision measurement, profile projectors, height gauges, micrometers and calipers
Application conditionFigures are factory-recorded process capabilities; the quoted tolerance is confirmed for each feature after drawing, material, setup and measurement review
04 Typical route
Plan the critical features
before machining starts.
The actual route changes by part. These stages show how requirements can stay connected from RFQ through inspection.
Process planning
Machining sequence, heat-treatment timing, inspection points and external processes.
CNC & grinding
Rough and finish machining coordinated with reference surfaces and stock allowance.
EDM & wire EDM
Applied where feature access, hardness or geometry makes cutting impractical.
Inspection
Measurement method aligned to drawing datums and the agreed reporting scope.
Protection & delivery
Final review, part protection and agreed material or measurement documents.
05 RFQ questions
What buyers usually
need to confirm.
Which files should I send?
Provide controlled 2D and 3D files when possible. Include the drawing revision, material, hardness, quantity, target date and required reports.
Can Huicheng quote from a 3D model only?
A model can start the review, but a 2D drawing is recommended for contractual tolerances, datums, surface finish and inspection notes.
What tolerance can Huicheng hold?
Factory process data records stable tolerances of 0.01 mm for CNC, 0.005 mm for EDM, 0.02 mm for slow-wire EDM, and 0.02 mm for grinding dimensional tolerance, flatness and parallelism. These are capability references, not a blanket promise for every feature; the drawing, material, setup and measurement plan determine the quoted requirement.
Can heat treatment and surface treatment be included?
Heat treatment, nitriding, blackening, PVD, polishing and texturing can be reviewed as part of the project. The quotation should state which operations are external and which reports are required.
Ready for a process review?
Send the drawing revision, material, critical tolerances, quantity and target delivery date.
Request a Quote →
